23B

Non-slide, double bunks, open layout

New Floorplan
Floorplan of RV model 23B
MSRP:$22,880*
Base price. Does not include freight, title, tax, options or dealer fees.
Build & Price

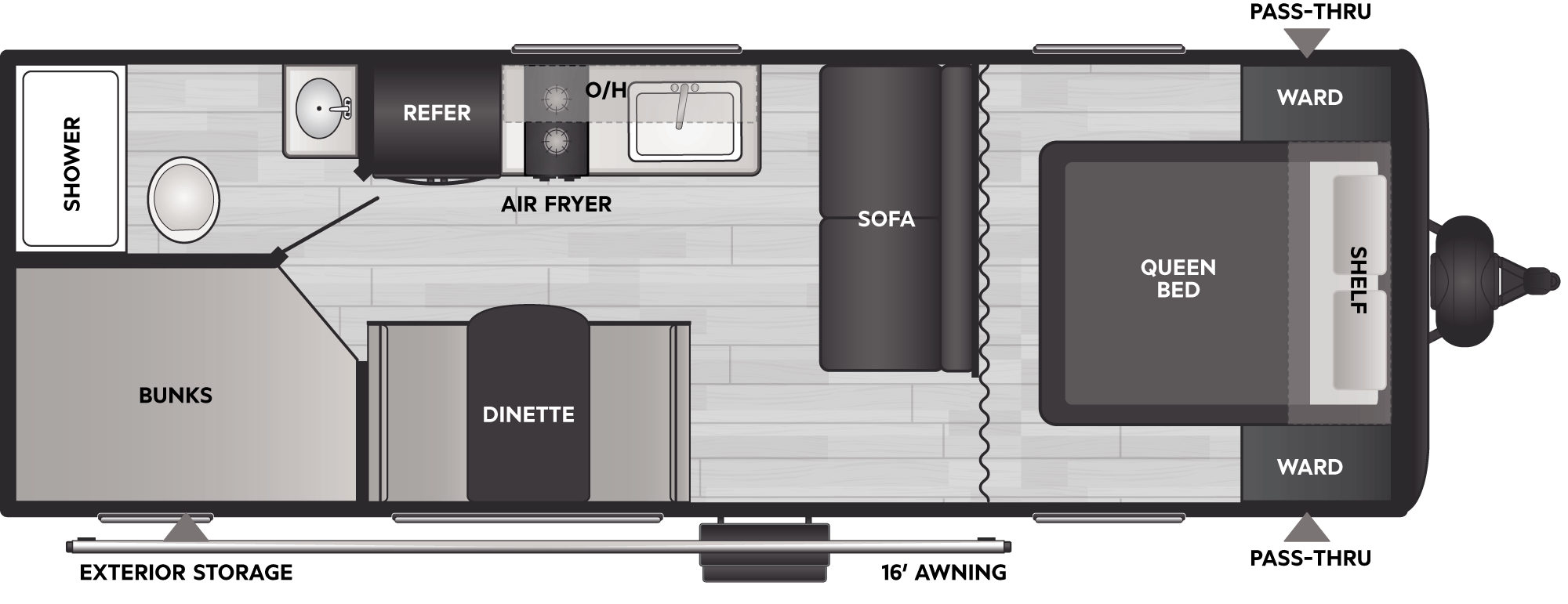

Floorplan of RV model 23B
Specifications
Specification Name Specification Value
RV Type Travel Trailer
MSRP $22,880
Shipping Weight 4,462 lb.
Carrying Capacity 2,038 lb.
Hitch 528 lb.
Length 27 ft 6 in
Height 10 ft 3 in
Tire-Size ST215/75R14D
Fresh Water 41 gal
Gray Water 34 gal
Waste Water 34 gal
Sleeping Capacity 6
Number of Propane Tanks 2
LPG 40 lb.
Refrigerator Size 8 cu ft

Standards & Options*

Standard
Optional

*Throughout the year, Keystone RV may modify model features, floor plans, and specifications. Website data typically reflects the most recent production run, however, any or all of these items are subject to change without notice. Please check with your dealer to for the details specific to the unit you are purchasing. You should also read all labels that are on each trailer for information concerning the safe operation of the unit and its components, actual weight(s), cargo carrying capacity, and tire information. MAKE SURE YOUR TOW VEHICLE IS COMPATIBLE WITH YOUR KEYSTONE RV. Owners of Keystone recreational vehicles are solely responsible for the selection and proper use of tow vehicles. For more information about the safe operation and use of various systems, Keystone service warranties and how to obtain service, extended use, towing, and maintenance, click here to review the Keystone Owner’s Manual. Component and appliance manuals can be found in the trailer.

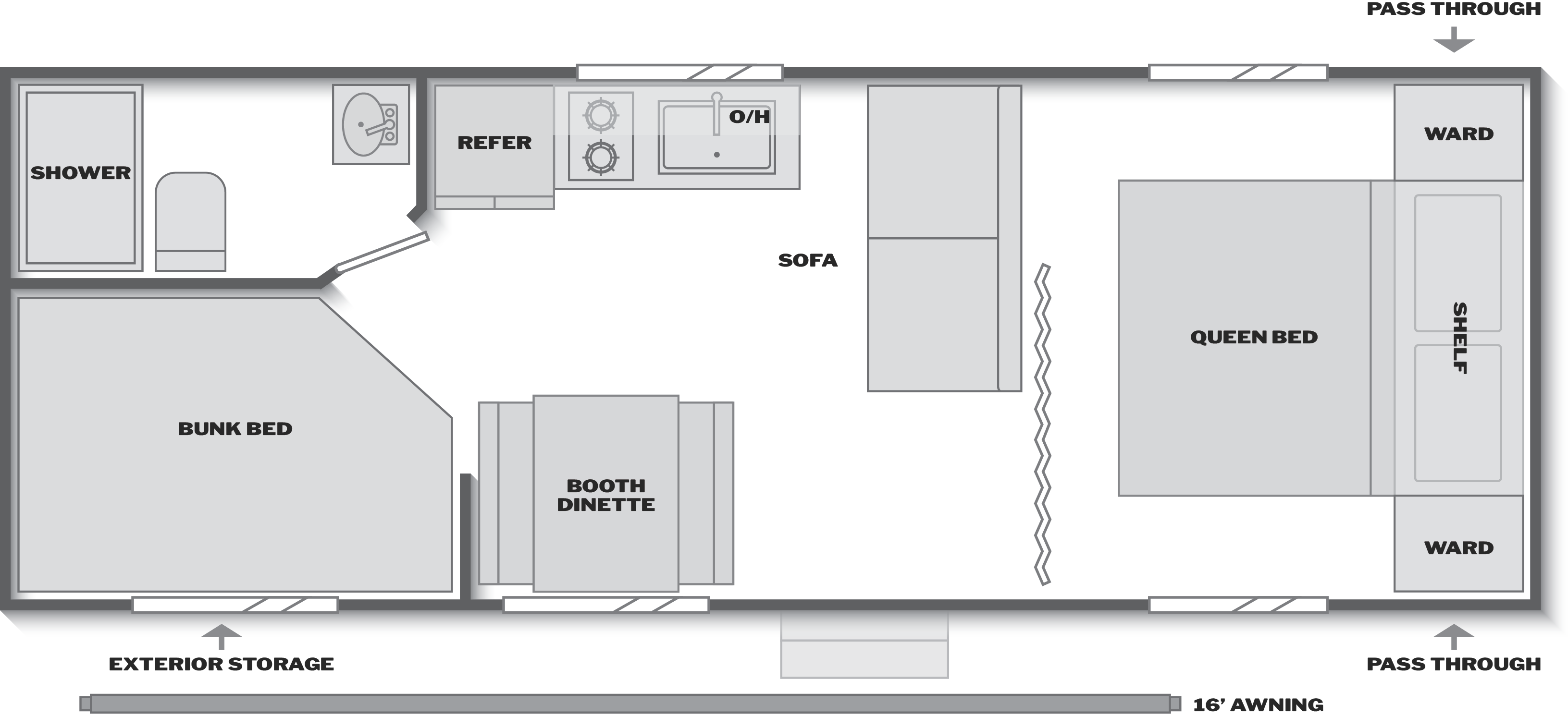

Floorplan of RV model 23B

23B

Non-slide, double bunks, open layout

New Floorplan
Floorplan of RV model 23B
MSRP:$22,880*
Base price. Does not include freight, title, tax, options or dealer fees.
    Floorplan of RV model 23B
    Specifications
    Specification Name Specification Value
    RV Type Travel Trailer
    MSRP $22,880
    Shipping Weight 4,462 lb.
    Carrying Capacity 2,038 lb.
    Hitch 528 lb.
    Length 27 ft 6 in
    Height 10 ft 3 in
    Tire-Size ST215/75R14D
    Fresh Water 41 gal
    Gray Water 34 gal
    Waste Water 34 gal
    Sleeping Capacity 6
    Number of Propane Tanks 2
    LPG 40 lb.
    Refrigerator Size 8 cu ft

    Standards & Options

    Exterior

    • Tinted safety glass windows
    • Walkable roof
    • Spare tire kit
    • Friction hinge entry door
    • LP quick connect
    • XL entry assist handle
    • Furrion® backup camera prep
    • Full pass through storage with extra tall doors
    • Exterior shower with hot and cold water
    • Power awning

    Interior

    • 78" interior height
    • Blackout night shades

    Keystone Exclusives

    • 3-year limited structural warranty
    • 1-year limited base warranty
    • Color-coded unified wiring standard
    • In-floor heating ducts
    • I-beam frame with stamped steel cross-members & outriggers

    Kitchen Features

    • Extra large window looking at campsite
    • Upgraded drawer sides and bottom
    • Dedicated trash can storage

    Appliances & Utilities

    • 15,000 BTU non-ducted A/C
    • 20,000 BTU furnace
    • 42,000 BTU Suburban tankless water heater
    • USB A + C plugs
    • 8 cubic foot 12V refrigerator
    • Microwave
    • 2 burner gas range
    • Interior and exterior LED lighting

    Bedroom Features

    • 60x74 queen bed with underbed storage
    • Bedside outlets
    • Wardrobe for hanging storage

    Safety

    • Breakaway switch
    • Tow plug and chain holder
    • GFI receptacles
    • Carbon monoxide detector
    • Smoke detector
    • Propane gas leak detector
    • Fire extinguisher
