27B

Super slide, private bunkroom, private bedroom

New Floorplan

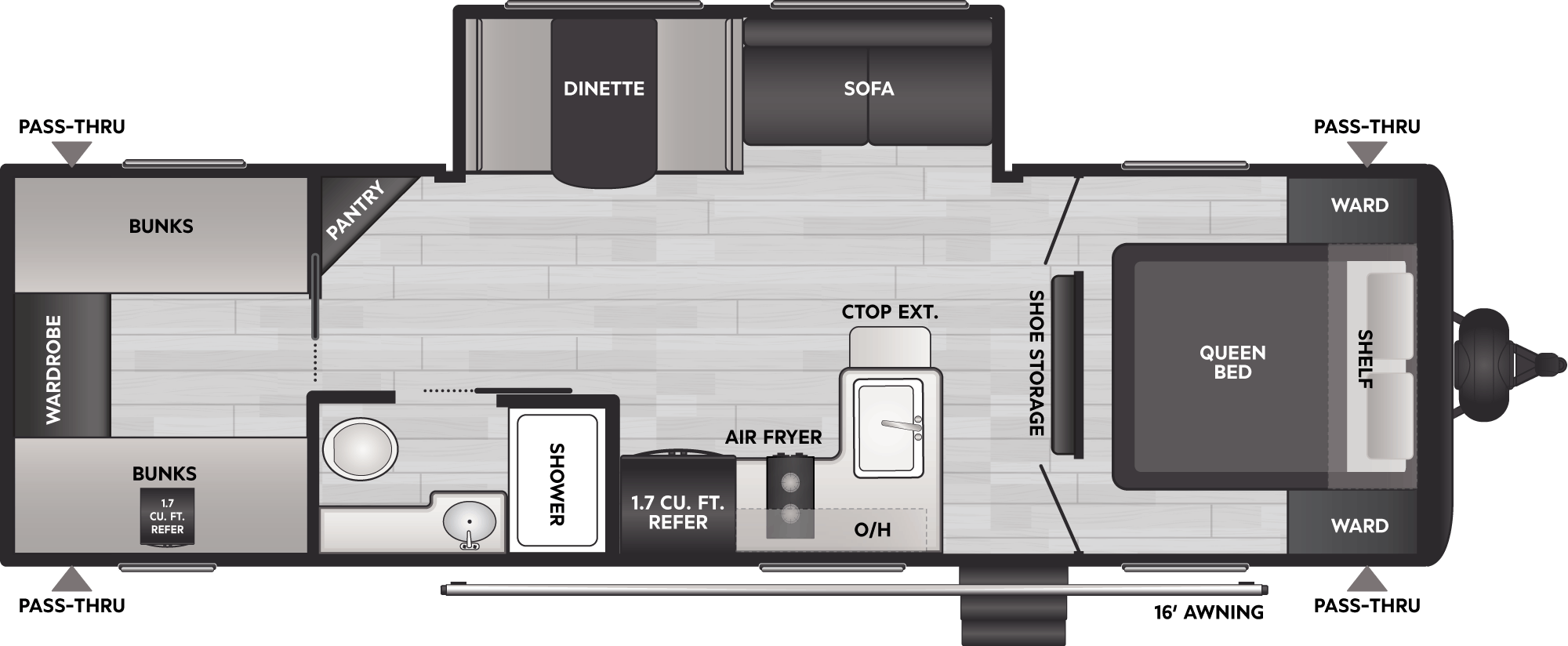

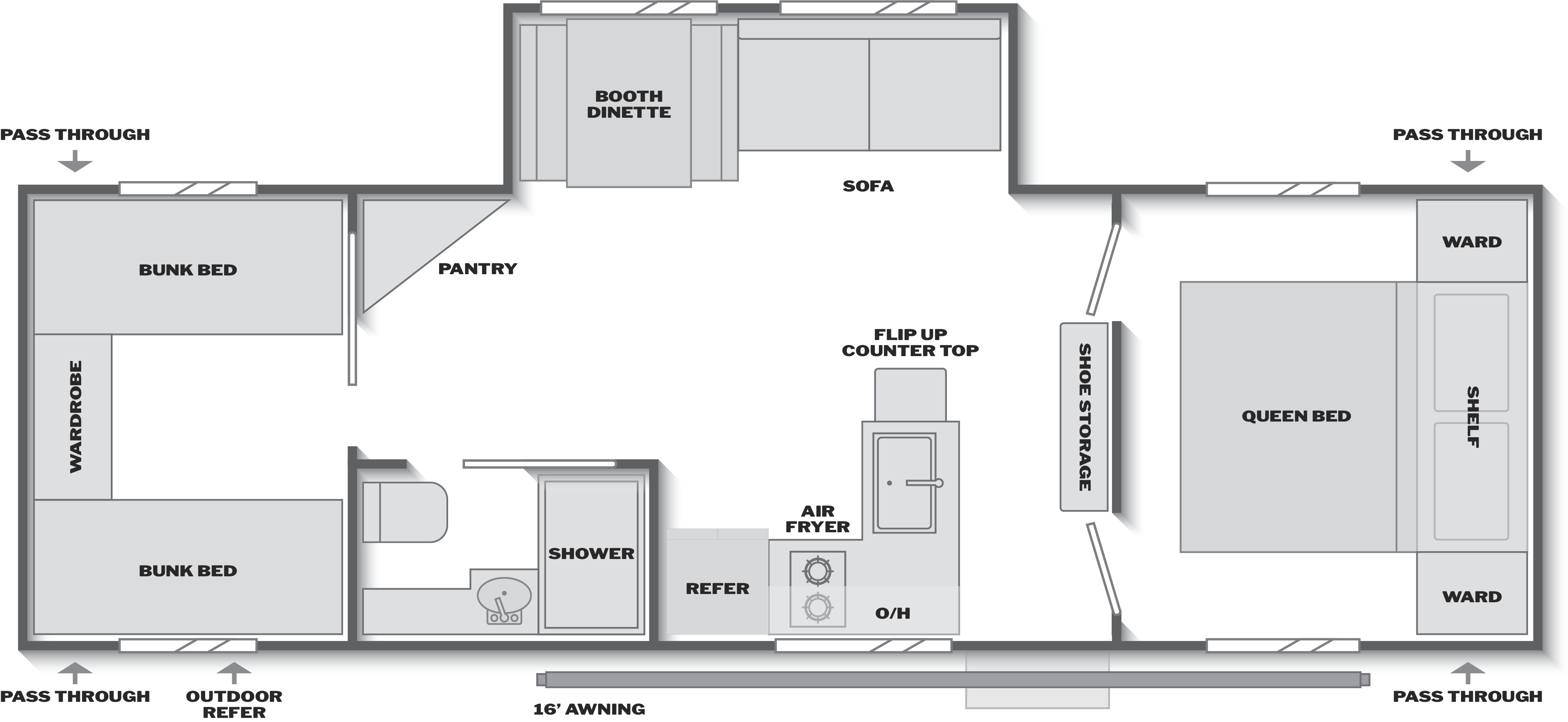

Floorplan of RV model 27B
MSRP:$31,120*
Base price. Does not include freight, title, tax, options or dealer fees.
Build & Price
Floorplan of RV model 27B
Specifications
Specification Name Specification Value
RV Type Travel Trailer
MSRP $31,120
Shipping Weight 6,094 lb.
Carrying Capacity 2,006 lb.
Hitch 716 lb.
Length 31 ft 11 in
Height 10 ft 10 in
Tire-Size ST215/75R14D
Fresh Water 41 gal
Gray Water 34 gal
Waste Water 34 gal
Sleeping Capacity 8
Number of Propane Tanks 2
LPG 40 lb.
Refrigerator Size 8 cu ft

Standards & Options*

Standard
Optional

*Throughout the year, Keystone RV may modify model features, floor plans, and specifications. Website data typically reflects the most recent production run, however, any or all of these items are subject to change without notice. Please check with your dealer to for the details specific to the unit you are purchasing. You should also read all labels that are on each trailer for information concerning the safe operation of the unit and its components, actual weight(s), cargo carrying capacity, and tire information. MAKE SURE YOUR TOW VEHICLE IS COMPATIBLE WITH YOUR KEYSTONE RV. Owners of Keystone recreational vehicles are solely responsible for the selection and proper use of tow vehicles. For more information about the safe operation and use of various systems, Keystone service warranties and how to obtain service, extended use, towing, and maintenance, click here to review the Keystone Owner’s Manual. Component and appliance manuals can be found in the trailer.

Floorplan of RV model 27B

27B

Super slide, private bunkroom, private bedroom

New Floorplan
Floorplan of RV model 27B
MSRP:$31,120*
Base price. Does not include freight, title, tax, options or dealer fees.
    Floorplan of RV model 27B
    Specifications
    Specification Name Specification Value
    RV Type Travel Trailer
    MSRP $31,120
    Shipping Weight 6,094 lb.
    Carrying Capacity 2,006 lb.
    Hitch 716 lb.
    Length 31 ft 11 in
    Height 10 ft 10 in
    Tire-Size ST215/75R14D
    Fresh Water 41 gal
    Gray Water 34 gal
    Waste Water 34 gal
    Sleeping Capacity 8
    Number of Propane Tanks 2
    LPG 40 lb.
    Refrigerator Size 8 cu ft

    Standards & Options

    Exterior

    • Tinted safety glass windows
    • Walkable roof
    • One piece heated and enclosed underbelly
    • Spare tire kit
    • Friction hinge entry door
    • 1.7 cubic foot outside refrigerator
    • 1.6 cubic foot outside refrigerator
    • LP quick connect
    • XL entry assist handle
    • Furrion® backup camera prep
    • Full pass through storage with extra tall doors
    • Exterior shower with hot and cold water
    • Power awning

    Interior

    • 78" interior height
    • Blackout night shades
    • Carpetless and flush floor slideout

    Keystone Exclusives

    • 3-year limited structural warranty
    • 1-year limited base warranty
    • Color-coded unified wiring standard
    • Tuf-Lokâ„¢ thermoplastic duct joiners
    • In-floor heating ducts
    • Tru-fitâ„¢ slide construction
    • I-beam frame with stamped steel cross-members & outriggers

    Kitchen Features

    • Extra large window looking at campsite
    • Upgraded drawer sides and bottom
    • Dedicated trash can storage

    Appliances & Utilities

    • 15,000 BTU ducted A/C
    • 50 AMP service with 2nd A/C prep
    • 35,000 BTU furnace
    • 42,000 BTU Suburban tankless water heater
    • USB A + C plugs
    • 8 cubic foot 12V refrigerator
    • Microwave
    • 2 burner gas range
    • Interior and exterior LED lighting

    Bedroom Features

    • 60x74 queen bed with underbed storage
    • Bedside outlets
    • Wardrobe for hanging storage

    Safety

    • Breakaway switch
    • Tow plug and chain holder
    • GFI receptacles
    • Carbon monoxide detector
    • Smoke detector
    • Propane gas leak detector
    • Fire extinguisher
