3810QBS

Bath and a Half, 2 Double Over Double Bunks & Dual Sinks in Master Bath

New Floorplan

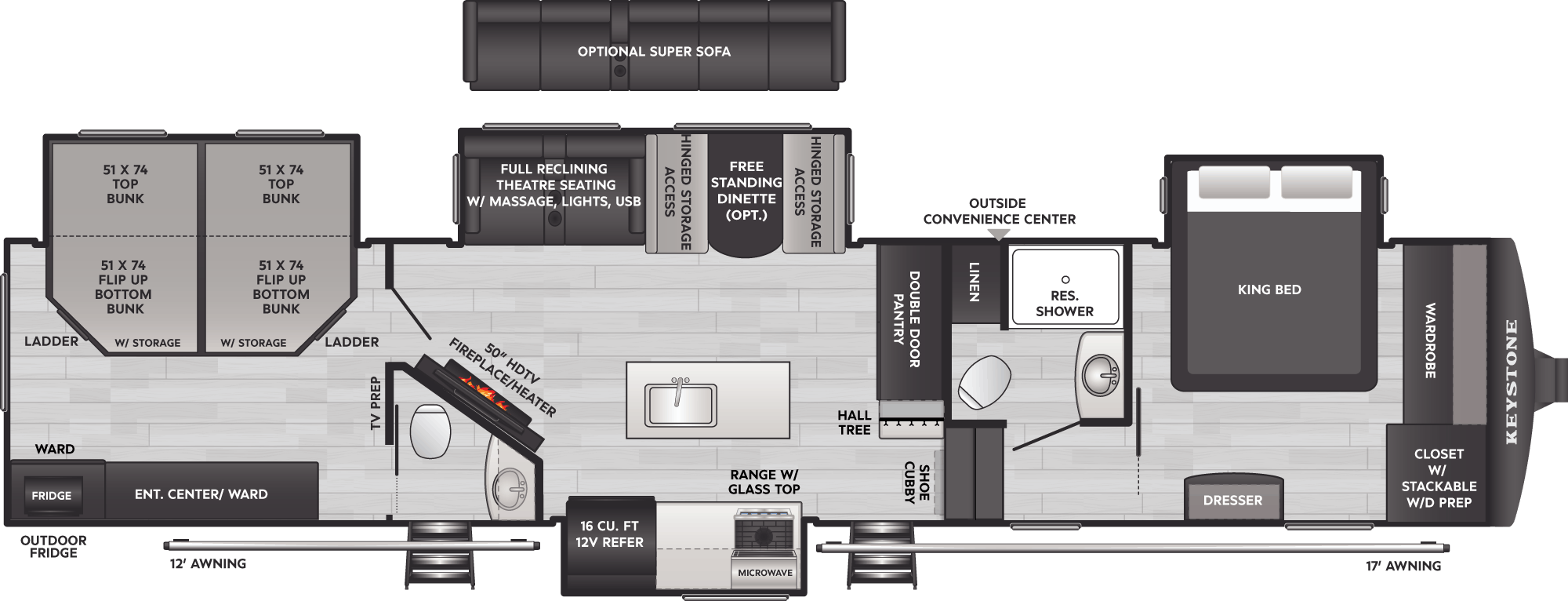

Floorplan of RV model 3810QBS
MSRP:$90,585*
Base price. Does not include freight, title, tax, options or dealer fees.
Build & Price
Floorplan of RV model 3810QBS
Specifications
Specification Name Specification Value
RV Type Fifth Wheel
MSRP $90,585
Shipping Weight 13,350 lb.
Carrying Capacity 3,650 lb.
Hitch 3,155 lb.
Length 42 ft 11 in
Height 13 ft 4 in
Tire-Size ST255/85R16G
Fresh Water 75 gal
Gray Water 122 gal
Waste Water 78 gal
Sleeping Capacity 12
Number of Propane Tanks 2
LPG 60 lb.
Refrigerator Size 16 cu ft

Standards & Options*

Standard
Optional

*Throughout the year, Keystone RV may modify model features, floor plans, and specifications. Website data typically reflects the most recent production run, however, any or all of these items are subject to change without notice. Please check with your dealer to for the details specific to the unit you are purchasing. You should also read all labels that are on each trailer for information concerning the safe operation of the unit and its components, actual weight(s), cargo carrying capacity, and tire information. MAKE SURE YOUR TOW VEHICLE IS COMPATIBLE WITH YOUR KEYSTONE RV. Owners of Keystone recreational vehicles are solely responsible for the selection and proper use of tow vehicles. For more information about the safe operation and use of various systems, Keystone service warranties and how to obtain service, extended use, towing, and maintenance, click here to review the Keystone Owner’s Manual. Component and appliance manuals can be found in the trailer.

Floorplan of RV model 3810QBS

3810QBS

Bath and a Half, 2 Double Over Double Bunks & Dual Sinks in Master Bath

New Floorplan
Floorplan of RV model 3810QBS
MSRP:$90,585*
Base price. Does not include freight, title, tax, options or dealer fees.
    Floorplan of RV model 3810QBS
    Specifications
    Specification Name Specification Value
    RV Type Fifth Wheel
    MSRP $90,585
    Shipping Weight 13,350 lb.
    Carrying Capacity 3,650 lb.
    Hitch 3,155 lb.
    Length 42 ft 11 in
    Height 13 ft 4 in
    Tire-Size ST255/85R16G
    Fresh Water 75 gal
    Gray Water 122 gal
    Waste Water 78 gal
    Sleeping Capacity 12
    Number of Propane Tanks 2
    LPG 60 lb.
    Refrigerator Size 16 cu ft

    Standards & Options

    Exterior

    • Enhanced Exterior Graphics w/ Integrated print
    • Full body paint
    • Floor plan specific 100" wide-body frame w/ full width outriggers
    • MaxTurnâ„¢ technology w/ Road Armorâ„¢
    • Hitch Visionâ„¢
    • 2" aluminum framed and laminated sidewalls
    • Tinted safety glass windows
    • Automotive-grade painted fiberglass front cap w/ KeyShieldâ„¢ protection
    • Fully walkable roof
    • Dual layer insulation
    • Rear ladder prep
    • Equal torsion cable slides w/ manual override
    • Thermal package (performs from 0-100 degrees)
    • Heated & enclosed underbelly w/ astro-foil insulation
    • Dexter® E-Z Lube axles with never-adjust brakes (6 year warranty)
    • Aluminum wheels w/ lifetime warranty
    • One touch 4-point leveling system w/ return hookup memory
    • 30" friction hinge entry doors
    • Suburban StowAway Entry Step with 33% Larger first step
    • High performance MAXXIS Radial Tires w/ Balancing Beads
    • 2" Receiver Hitch w/ 4 way hook up - 3,000lb Limit
    • Heated pass-through storage w/ lockable slam latch baggage doors
    • Locking slam latch baggage doors
    • Back-up camera prep
    • Battery disconnect
    • Outside shower w/ hot & cold water
    • Over-sized roto cast holding tanks with best in class capacities
    • Outside kitchen
    • LP quick connect
    • Electric awning with friction hinge adjustment, LED light strip, & manual override

    Interior

    • Congoleum® vinyl flooring w/ one-piece Dyna Spanâ„¢ marine grade decking
    • Black out night shades
    • Floating style made deck steps with Shoe storage
    • Designer upholstered window valances
    • Residential style screwed & glued cabinetry
    • Theater seating w/ USB Charging
    • Thomas Payne luxury collection furniture
    • 5.5K BTU electric fireplace w/ thermostat control & remote
    • Maxx Air® power vent fan(s) w/ rain sensor

    Keystone Exclusives

    • 3-year limited structural warranty
    • 1-year limited base warranty
    • Color-coded unified wiring standard
    • 4G LTE and Wi-Fi prep
    • Tuf-Lokâ„¢ thermoplastic duct joiners
    • KeyTVâ„¢ multisource signal controller
    • In-floor heating ducts
    • Tru-fitâ„¢ slide construction

    Kitchen Features

    • 22" deep drawers w/ full extension heavy-duty guides
    • Residential style seamless marbled countertops
    • Deep single-basin stainless steel industrial sink
    • High-rise pull out faucet & sprayer
    • Legless dinette w/ four chairs & storage
    • Wood beam style pendant light soffit
    • Pendant lights over kitchen island
    • Free standing table w/ four chairs

    Appliances & Utilities

    • (2) 30 lb. LP tanks w/ auto changeover
    • (2) Air conditioning units
    • 3rd. A/C
    • 30K BTU furnace
    • Girard tankless on-demand water heater
    • Premium entertainment center w/ HD LED TV, Multi Zone Stereo, exterior TV hook-up & speakers
    • 16 Cu. Ft. 12V refrigerator
    • Stainless steel microwave w/carousel
    • Oversized 30" over the range microwave
    • 3-burner gas range w/ 21" stainless steel oven, glass top, & piezo electronic ignite
    • Stackable washer/dryer prep
    • Dimmable Ribbon Style LED Batten Lighting
    • Traditional Central Command Center

    Bedroom Features

    • 70" x 80" king bed w/ gas strut storage
    • LED reading lights above bed
    • Upgraded bedspread
    • TV hook-up

    Bathroom Features

    • Large 48 x 30 shower w/ self cleaning shower enclosure and domed skylight
    • Porcelain foot flush toilet

    Safety

    • Breakaway switch
    • GFI receptacles
    • Carbon monoxide detector
    • Smoke detector
    • Fire extinguisher
